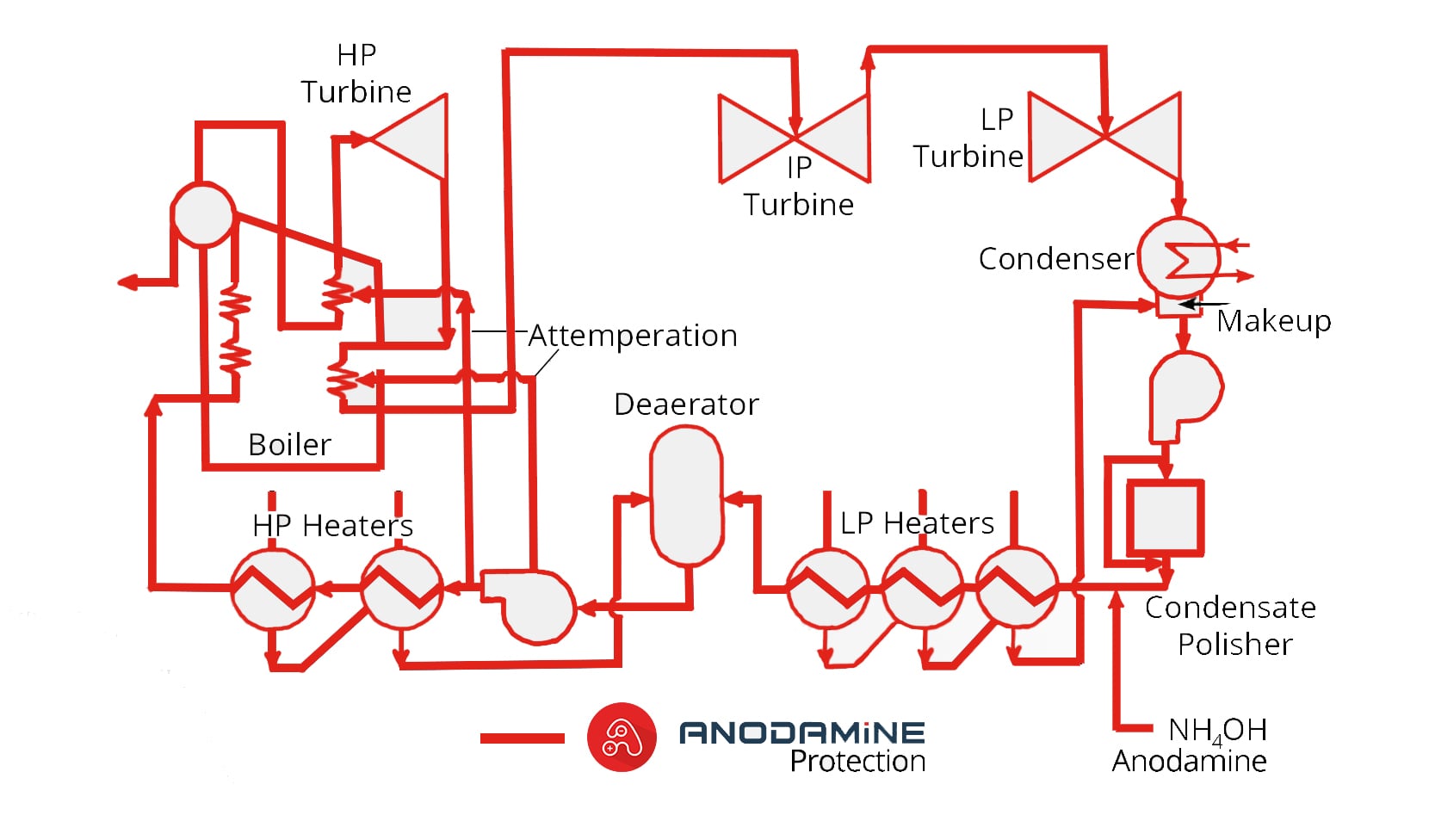

Anodamine is a green, OEM-compliant, surface-active chemistry that selectively targets all virgin metallurgies for formation of a hydrophobic protective barrier film. This 100% water-soluble chemistry partitions itself in both single and two-phase locations, thus providing metal protection throughout the entire steam water cycle.
Anodamine satisfies these main areas of cycle chemistry
Anodamine is a non-toxic, environmentally-friendly chemistry with no handling risks. The result is a safer work environment and peace of mind for everyone, without compromise to performance.
These are the unique performance and value-added benefits one can expect
Our chemistry ensures full compliance with OEM steam quality guidelines with cation conductivities of <0.2 µS/cm. An increase of 0.05 µS/cm per 1 ppm dosed is typically experienced, coming from Anodamine itself.
Read More
Unlike most conventional treatment chemicals and even other film-forming amines, Anodamine products offer exceptionally low toxicity and handling hazards (LD50 values range 49,500 - 116,000 mg/kg).
Read More
Depending on pressure, Anodamine's volatile to liquid ratio is between 50/50 to 60/40. In result, protection reaches all single and two-phase locations.
Read More
Tested up to 566°C/1051°F on super critical once-through units operational on OT, no degradation products have been measured.
Read More
Anodamine allows for complete elimination of reducing agents, thus allowing optimum ferrous and admiralty metal protection independent of oxygen and ammonia dosage.
Read More
The volatile to liquid ratio of Anodamine results in a protection of single and two-phase areas, thus mitigating Flow-Assisted Corrosion.
Read More
There is no cycle poisoning, no degradation products, and no release of filming layer as seen with conventional film-forming amines.
Read More
Anodamine has been shown to assist in preventing pitting, thus preventing the propagation of SCC on turbine steels.
Read More
Online instrumentation and equipment is unaffected by Anodamine dosage.
Read More
No typical amine-supported oxide dissolution and/or transport occurs.
Read More
Anodamine does not increase circuit pH's or appreciably affect system standard conductivities.
Read More
Analysis of chemical residual is achieved with a simple spectrophotometric method, without the use of Bengal Rose dye.
Read MoreAnodamine offers complete metal protection to all water or steam-touched surfaces in both single and two-phase areas, leaving one with the peace of mind that their capital assets are well-protected and reliable in all locations. Protection is applicable to any all-ferrous or mixed metallurgies systems without compromise.
A brief comparison between conventional regimes, conventional film-forming amines, and Anodamine
| Conventional
Regimes |
Conventional
Film-Forming Amines |
|
|
|---|---|---|---|
|
Toxicity
|
Often hazardous and toxic | Slightly hazardous | Non-toxic, non-hazardous |
|
Surface Protection
|
Limited/problematic | Only with clean metal | Virgin metal protection |
|
Stabilization of Oxides
|
Partial | Partial | Yes |
|
Under-Deposit Corrosion
|
Problematic | Worsens | Eliminates |
|
Effects on Online Instrumentation
|
No | Yes | No |
|
Increase Cation Conductivity
|
No | Significant increase | Only with initial cycle clearance (temporary) |
|
OEM Compliance Steam Quality
|
Yes | No | Yes |
|
Thermally Stable
|
Yes | No (organic acid degradation products) | Yes |
|
All-Ferrous Protection
|
Partial | Partial | Yes |
|
Mixed Metallurgy Protection
|
Partial | Partial | Yes |
|
Single-Phase Protection (FAC)
|
Yes | Yes | Yes |
|
Two-Phase Protection (FAC)
|
No | No | Yes |
